Thuis ProductenHD-LED-displayOutdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens

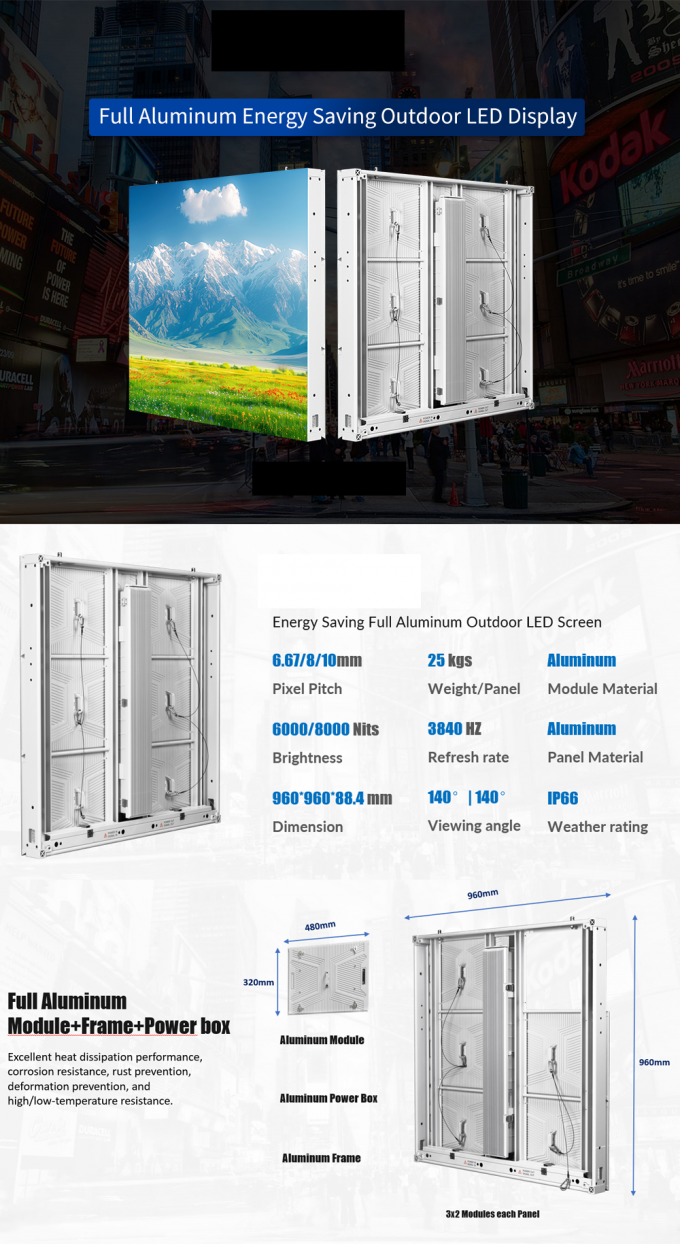

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens
Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens
Basisinformatie
Plaats van herkomst: CHINA
Merknaam: CONWIN
Certificering: CE,ROHS
Min. bestelaantal: 1m²
Contact nu
Pixelveld: 8 mm Garantie: 3 jaar
Onderhoud: Front -service Beste zichtsafstand: 1-10 meter
Dikte: 80 mm Onderhoudsmethode: Voorkant
Pakketwijze: SMD2121 Verhouding: 16: 9
Markeren:

outdoor LED digital signage display

,

double sided LED billboard screen

,

solar powered outdoor LED display

Product Paramenters
Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 0

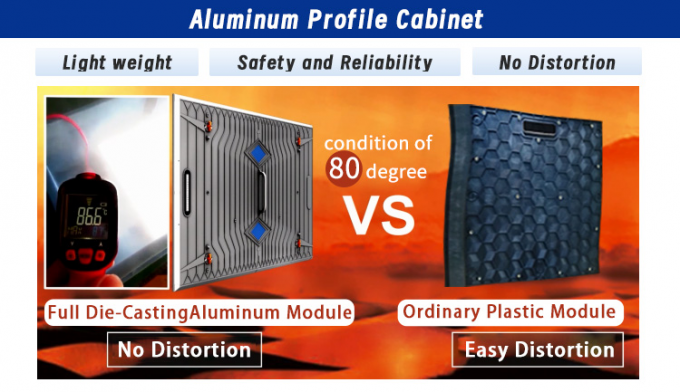

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 1

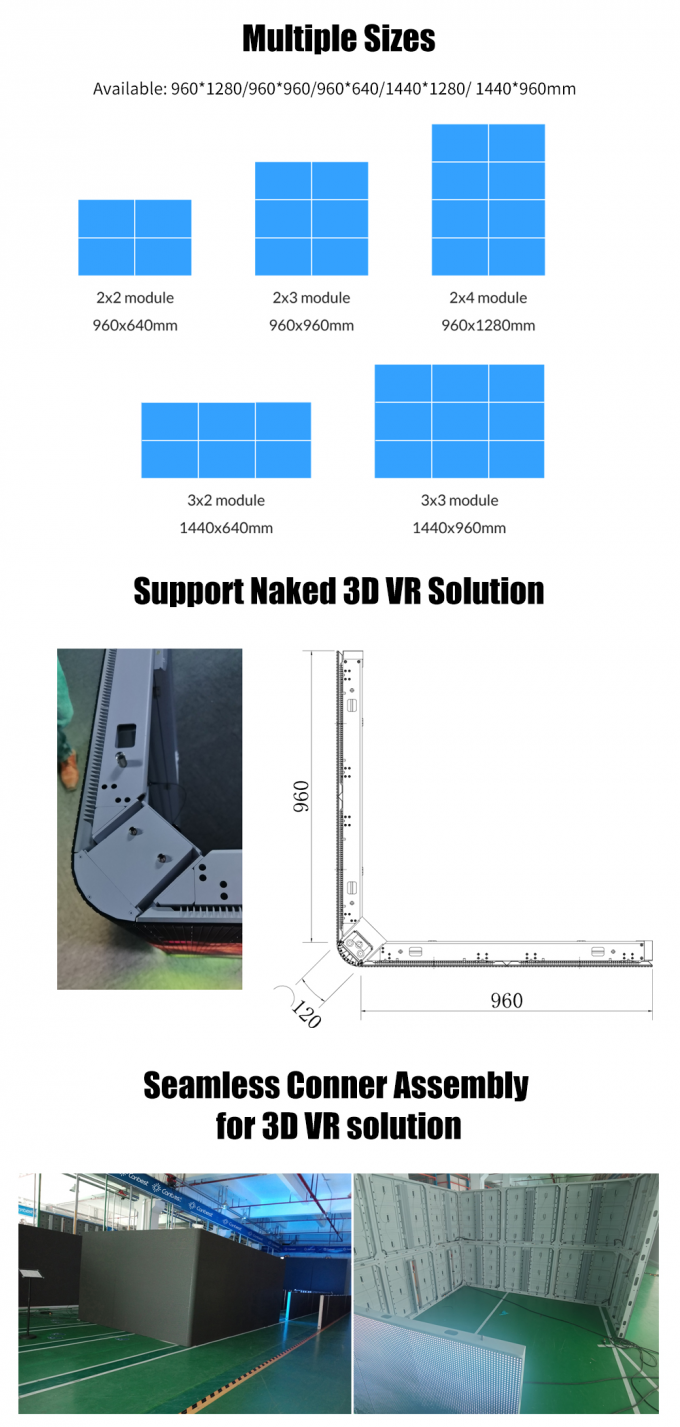

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 2

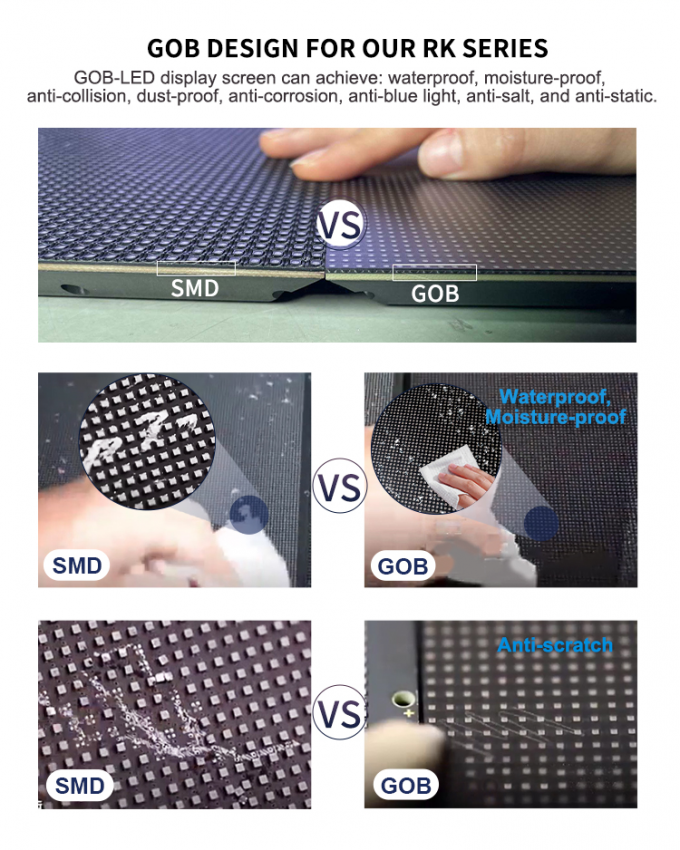

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 3

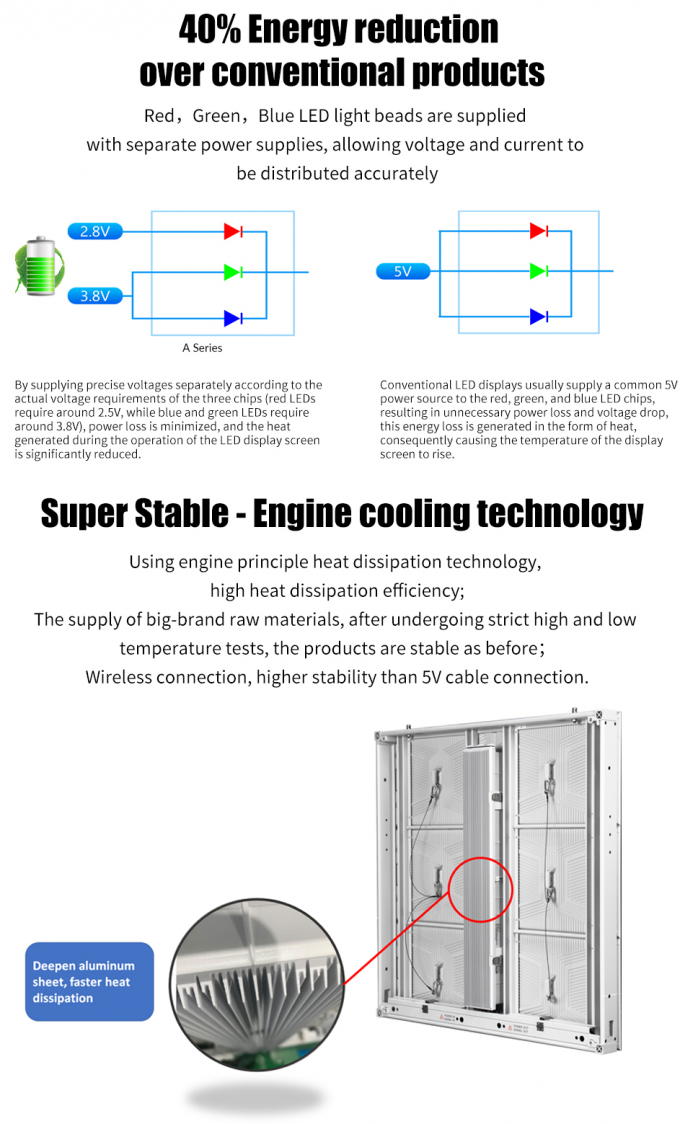

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 4

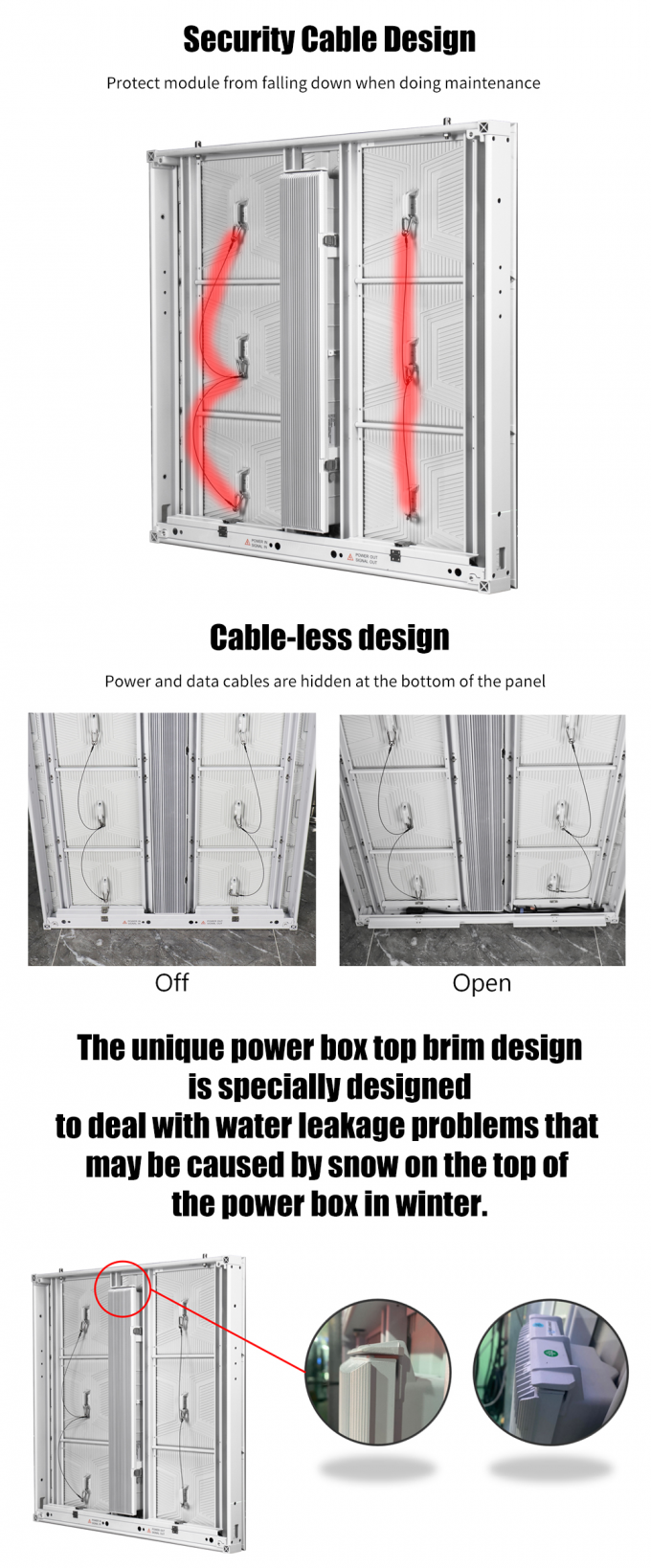

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 5

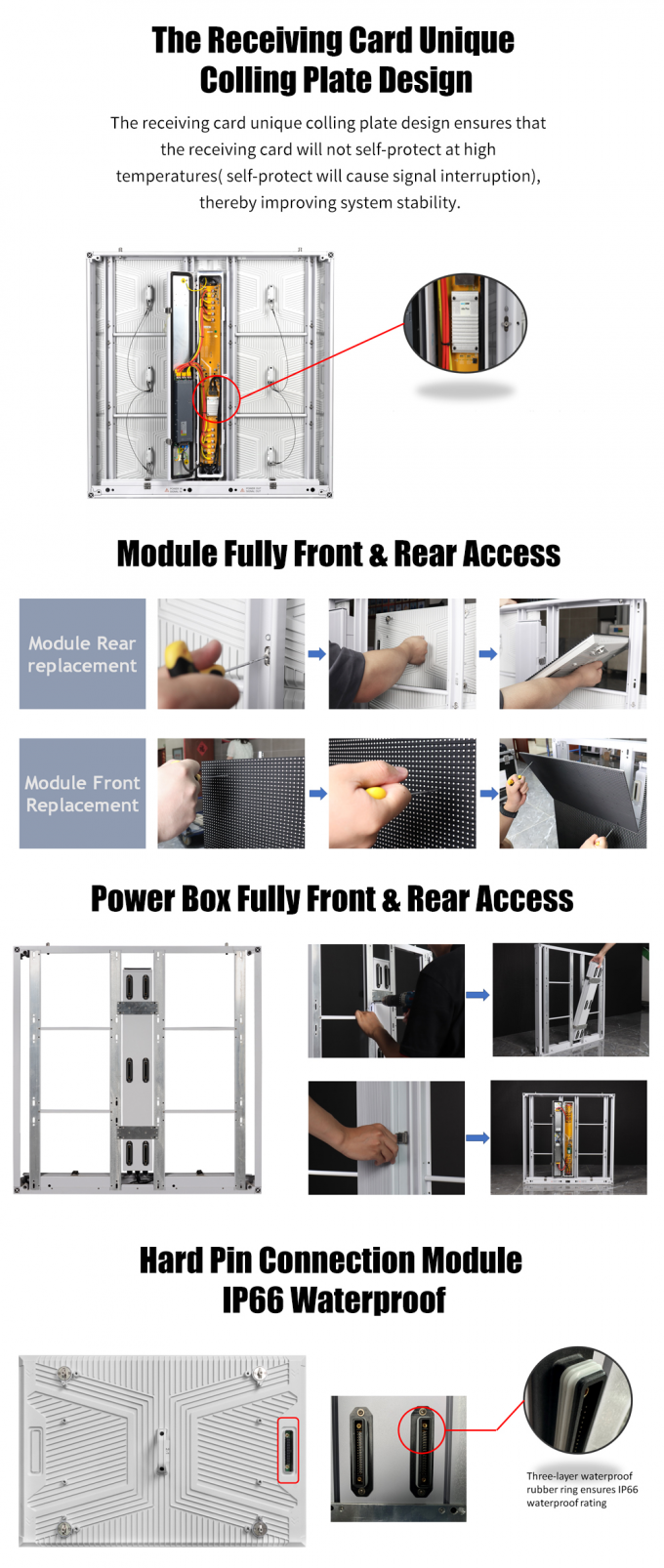

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 6

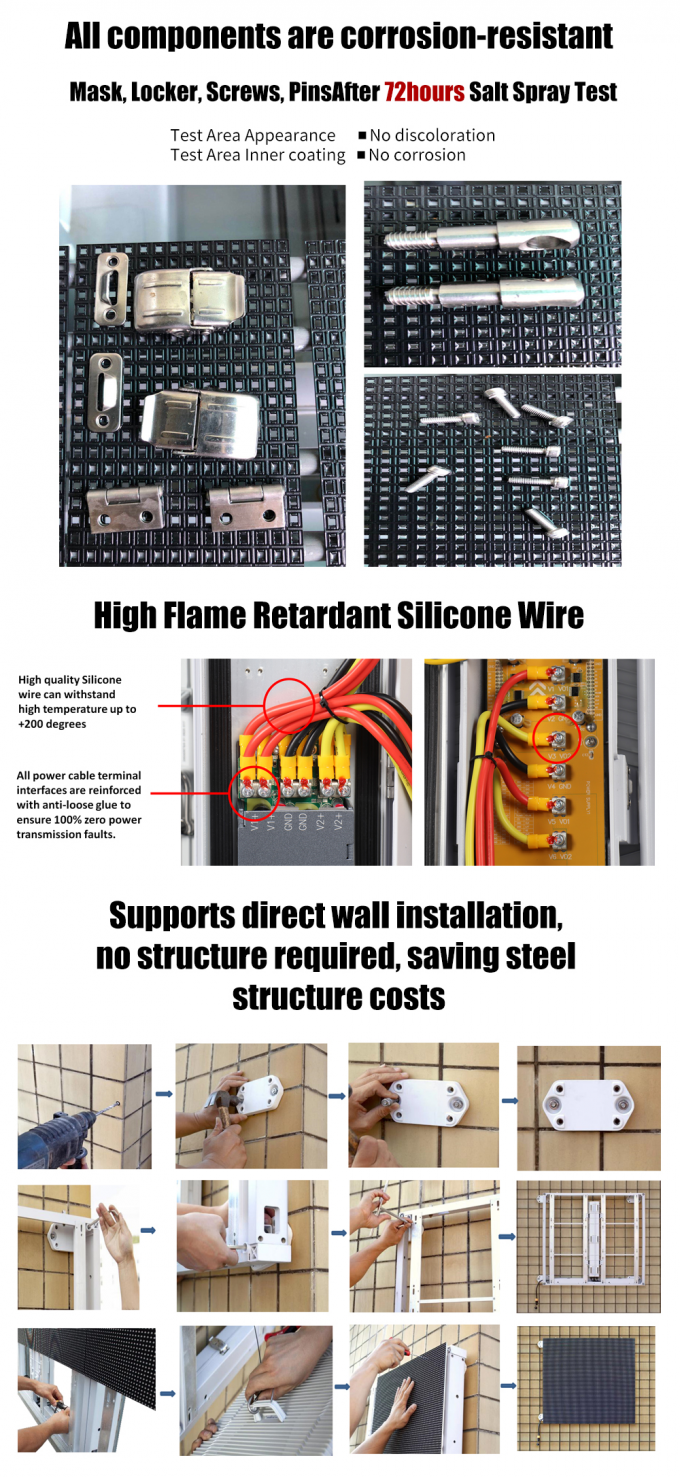

Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 7
Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 8
Pixel Pitch (mm)
6.67
8
10
Pixel Configuration
SMD2727
SMD3535
SMD3535
Resolution(dots)
72*48
60*40
48*32
Size (mm)
480*320
480*320
480*320
Size(mm)
960*960*82.6
960*960*82.6
960*960*82.6
Material
Aluminum
Aluminum
Aluminum
Weight(kgs/Panel)
27
26
25
Resolution(dots)
144*144
120*120
96*96
Pixel Density(dots/㎡)
22500
15625
10000
Brightness(nits)
5500(8000nits gold wire optional)
5500(8000nits gold wire optional)
5500(8000nits gold wire optional)
Grey(Bit)
14
14
14
Refresh Rate(Hz)
3840
3840
3840
Color temperature(K)
5500~9500
5500~9500
5500~9500
Scanning
1/5
1/3
1/2
Viewing Angle(H/V)
140°/140°
140°/140°
140°/140°
Max Power(W/㎡)
640
640
640
Avg Power (W/㎡)
190
190
190
AC Input Voltage
AC100--240V±10%/50~60Hz
AC100--240V±10%/50~60Hz
AC100--240V±10%/50~60Hz
Storage TEMP(℃)
-40~60
-40~60
-40~60
Working TEMP (℃)
-30~50
-30~50
-30~50
Storage Humidity (RH)
10%~60% No condensation
10%~60% without condensation
10%~60% without condensation
Working Humidity(RH)
10%~60% No condensation
10%~60% without condensation
10%~60% without condensation
Protection(Front/Back)
IP66
IP66
IP66
Maintenance Types
Front&Rear Maintenance
Front&Rear Maintenance
Front&Rear Maintenance
Life Span(hrs)
≧100000
≧100000
≧100000
Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 9
Outdoor LED Screen Solar Electronic Signs Double Sided Billboard Steel Structure External Outdoor Led Digital Signage Display Screens 10

label:

Aluminium Shell HD LED-display

HD-LED-display Ultra Slim

Advertentie Waterdicht LED-display
